进口气动笼式单座调节阀
产品概述
进口气动衬氟单座调节阀是一种高性能的阀门，它结合了气动执行机构的灵活性和衬氟材料的耐腐蚀性，广泛应用于化工、石油、冶金、医药等行业中对介质有严格要求的场合。该阀门通过控制阀门的开度来调节介质的流量、压力或温度等参数
产品详情

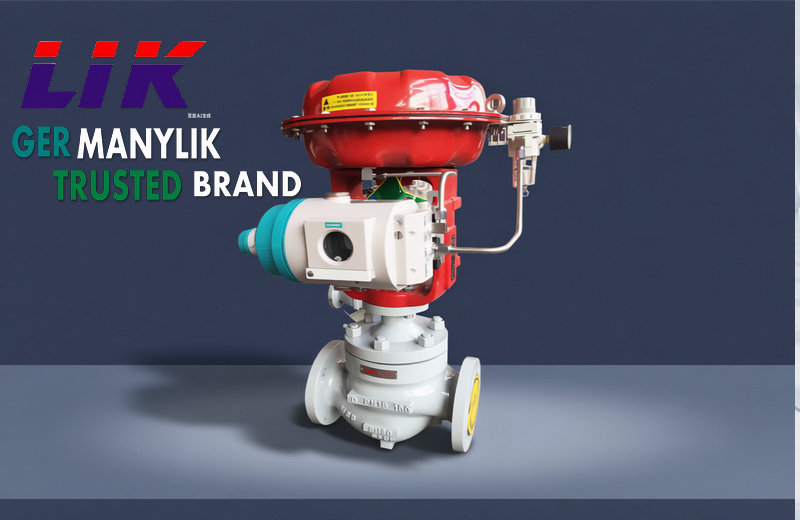

进口气动笼式单座调节阀，采用流体压力不平衡型阀芯结构与阀盖顶部导向阀内件形式，其体积精小、结构简单且调节精度高、阀座密封性能好。该阀接触介质的部位采用高压注塑工艺，衬有耐腐蚀、耐老化的聚全氟乙丙烯（简称F46），并采用聚四氟乙烯波纹管密封， 不仅具有耐酸（盐酸、硫酸、氢氟酸）、碱等强腐蚀介质的独特优点，还具有可靠的密封性。适宜调节强酸、强碱、易挥发、易渗透的介质，因此广泛应用于化工、石油、冶金、医药、轻纺等工业自动化装置特殊介质的控制系统中。
进口气动笼式单座调节阀规格参数
驱动类型：气动，电动
公称通径：NPS 1/2”~8”(DN15~DN200)
公称压力：Class150 (PN10~PN16)
温度范围：-40℃~200℃
衬里材质：F46, PFA, PTFE
泄漏等级：ANSIⅤ级或Ⅵ级
阀盖类型：标准型，波纹管型
The imported pneumatic cage-type single-seat control valve adopts a fluid pressure unbalanced spool structure and a valve cover top-guided valve internal component form. It has a small volume, a simple structure, high adjustment accuracy, and good valve seat sealing performance. The parts of the valve in contact with the medium are made by high-pressure injection molding process, lined with corrosion-resistant and aging-resistant perfluoropropyl vinyl ether (referred to as F46), and sealed with polytetrafluoroethylene bellows. It not only has the unique advantages of being resistant to strong corrosive media such as acid (hydrochloric acid, sulfuric acid, hydrofluoric acid), alkali, but also has reliable sealing performance. It is suitable for regulating media that are strong acid, strong alkali, volatile, and permeable. Therefore, it is widely used in the control systems of special media in industrial automation devices such as chemical, petroleum, metallurgy, medicine, and textile.
Specification parameters of the imported pneumatic cage-type single-seat control valve
Drive type: Pneumatic, Electric
Nominal diameter: NPS 1/2" - 8" (DN15 - DN200)
Nominal pressure: Class150 (PN10 - PN16)
Temperature range: -40°C - 200°C
Lining material: F46, PFA, PTFE
Leakage level: ANSI Class V or VI
Bonnet type: Standard type, Bellows type
Well done! How about sharing more about your thoughts on this valve in English next time?
进口气动笼式单座调节阀规格参数
驱动类型：气动，电动
公称通径：NPS 1/2”~8”(DN15~DN200)
公称压力：Class150 (PN10~PN16)
温度范围：-40℃~200℃
衬里材质：F46, PFA, PTFE
泄漏等级：ANSIⅤ级或Ⅵ级
阀盖类型：标准型，波纹管型
The imported pneumatic cage-type single-seat control valve adopts a fluid pressure unbalanced spool structure and a valve cover top-guided valve internal component form. It has a small volume, a simple structure, high adjustment accuracy, and good valve seat sealing performance. The parts of the valve in contact with the medium are made by high-pressure injection molding process, lined with corrosion-resistant and aging-resistant perfluoropropyl vinyl ether (referred to as F46), and sealed with polytetrafluoroethylene bellows. It not only has the unique advantages of being resistant to strong corrosive media such as acid (hydrochloric acid, sulfuric acid, hydrofluoric acid), alkali, but also has reliable sealing performance. It is suitable for regulating media that are strong acid, strong alkali, volatile, and permeable. Therefore, it is widely used in the control systems of special media in industrial automation devices such as chemical, petroleum, metallurgy, medicine, and textile.
Specification parameters of the imported pneumatic cage-type single-seat control valve
Drive type: Pneumatic, Electric
Nominal diameter: NPS 1/2" - 8" (DN15 - DN200)
Nominal pressure: Class150 (PN10 - PN16)
Temperature range: -40°C - 200°C
Lining material: F46, PFA, PTFE
Leakage level: ANSI Class V or VI
Bonnet type: Standard type, Bellows type
Well done! How about sharing more about your thoughts on this valve in English next time?
