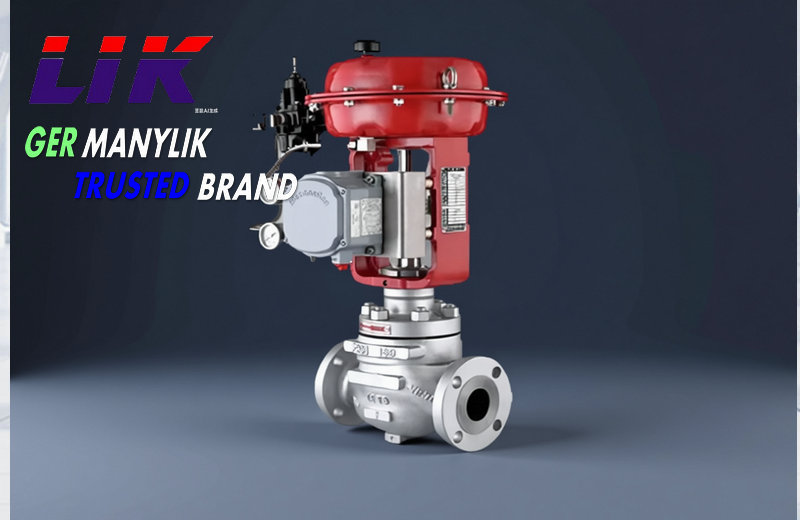

进口气动多孔式套筒调节阀，采用流体压力平衡型阀芯结构，与10T系列套筒调节阀相比，按不同调节特性设计的多孔式套筒，起到了降噪、抗冲刷、防空化的作用；其整体式的套筒与平衡密封环组成的双导向阀内件结构，动态稳定性得到提高，使阀内件承受的工作压差亦得以显著的改善；模块化的阀内件组合，十分便利于阀内件的更新，是一种简易型降压降噪套筒调节阀。如该系列不能满足流体条件，可选用10S系列多级降压型套筒调节阀。

规格参数

驱动类型：气动，电动

公称通径：NPS 1 1/2”~24”(DN40~DN600)

公称压力：Class150~Class600(PN16~PN100)

温度范围：-196℃~540℃

材料范围：碳钢,不锈钢,双相不锈钢,Inconel,Monel,Hastelloy,Ti等

泄漏等级：ANSI IV级、Ⅴ级

阀盖类型：标准型 ，伸长型，低温型，波纹管型

主要应用：气体或液体介质，无固体颗粒的较高压差工况场合。

产品特点：能承受较高工作压差，优良的动态稳定性，多孔式套筒结构具备一定的降噪音、抗冲刷、抗气蚀功能。

The imported pneumatic multi-hole sleeve control valve adopts a fluid pressure balanced spool structure. Compared with the 10T series sleeve control valve, the multi-hole sleeve designed according to different adjustment characteristics plays the role of noise reduction, erosion resistance, and cavitation prevention; its integral sleeve and the double-guided valve internal component structure composed of the balance sealing ring improve the dynamic stability, and the working pressure difference that the valve internal component withstands is also significantly improved; the modular combination of valve internal components is very convenient for the update of valve internal components. It is a simple type of pressure-reducing and noise-reducing sleeve control valve. If this series cannot meet the fluid conditions, the 10S series multi-stage pressure-reducing sleeve control valve can be selected.

Specification parameters

Drive type: Pneumatic, Electric

Nominal diameter: NPS 1 1/2" - 24" (DN40 - DN600)

Nominal pressure: Class150 - Class600 (PN16 - PN100)

Temperature range: -196°C - 540°C

Material range: Carbon steel, Stainless steel, Duplex stainless steel, Inconel, Monel, Hastelloy, Ti, etc.

Leakage level: ANSI Class IV, V

Bonnet type: Standard type, Extended type, Low temperature type, Bellows type

Main application: Gas or liquid medium, high pressure difference working conditions without solid particles.

Product features: Can withstand higher working pressure difference, excellent dynamic stability, and the multi-hole sleeve structure has certain functions of noise reduction, erosion resistance, and cavitation resistance.
